DIG-BOY DBL-V1100 Stand-On Skid Steer Loader
500 kg rated operating capacity, 650 kg maximum load, 1600 kg operating weight. Engineered for ultimate versatility, the DIG-BOY DBL-V1100 leads its class in lift height and hydraulic power — dominating any job site from livestock ranching to professional landscaping.
Small, weak loaders that lack breakout force leave you exhausted at the end of the day, and lightweight machines simply cannot lift high enough to dump into big trucks or handle heavy, full pallets. That limits your business and farm productivity: you do jobs in two steps instead of one, and you turn down profitable heavy-lifting landscaping or municipal projects. The V1100 is a high-performance machine built for serious work — a powerful 3-cylinder Kubota or Yanmar diesel engine, an impressive 500 kg rated operating capacity (650 kg max load) and best-in-class dumping height let you load high-sided dump trucks and move heavy pallets with total ease. Responsive hydraulic pilot joysticks and a premium ride-on platform complete every tough job faster and smoother.
Class-leading specifications
| Rated loading capacity | 500 kg |
| Maximum loading capacity | 650 kg |
| Operating weight | 1600 kg |
| Climbing ability | 25° |
Engine
| Engine brand | Yanmar 3TNV80 / Kubota D1105 (optional) |
| Emission standard | EPA / EURO 5 |
| Engine power | 17.8 kW / 18.5 kW |
| Number of cylinders | 3 |
| Fuel tank capacity | 40 L (10.5 gal) |
Dimensions
| Overall length | 2691 mm / 106.0 in |
| Overall width | 1235 mm / 48.6 in |
| Overall height | 1548 mm / 60.9 in |
Other parameters
| Rated pressure | 19.5 MPa |
| Maximum digging force | 4.5 KN |
| Travel speed | 0-4.5 km/h |
| Bucket capacity | 0.19 m³ |
| Track ground length | 1026 mm |
| Vehicle length (without bucket) | 1981 mm |
| Ground clearance | 200 mm |
| Track model | 230 × 72 × 45 |
Engineered for maximum productivity
- Crawler chassis — low centre of gravity and 230 mm tracks. Engineered with a low centre of gravity for high passability and exceptional stability. Equipped with heavy-duty 230 mm engineering rubber tracks, this rugged chassis is completely unafraid of harsh terrain.
- Durable structural design — one-piece stamped boom and vertical lift. A seamless, high-strength, torsion-resistant one-piece stamped boom. The advanced vertical lift design ensures maximum stability while creating a large dumping space for effortless high-truck loading.

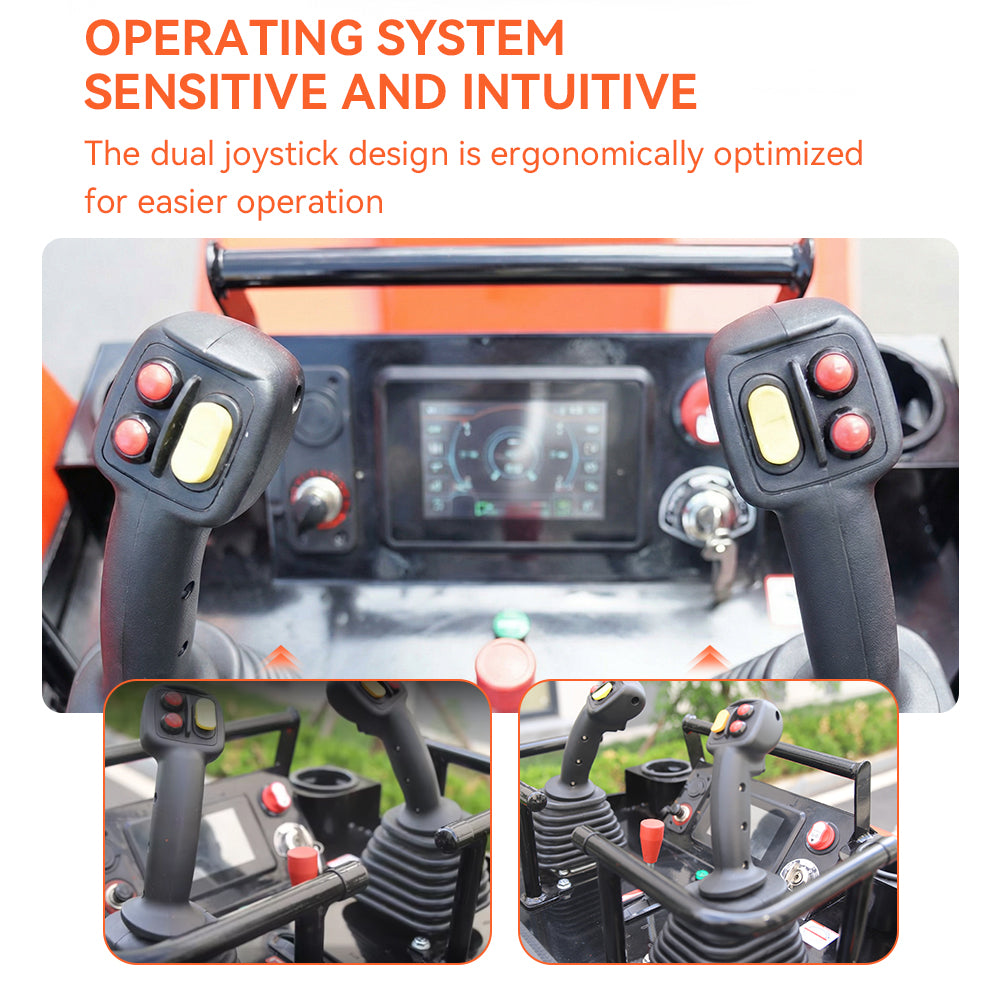

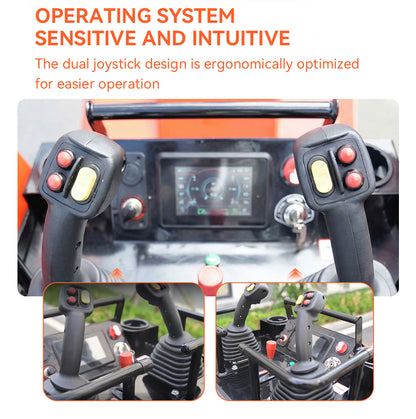

- Operating system — double hydraulic pilot joysticks. A dual joystick design ergonomically optimised for easier and more precise operation. The highly sensitive hydraulic control system maximises comfort while significantly reducing operator fatigue.
- Easy maintenance — powerful engine and open-cover design. World-class Kubota or Yanmar EPA/Euro 5 engines with a fully integrated open-cover hood. The entire engine compartment opens for rapid, unhindered daily maintenance and minimum downtime.

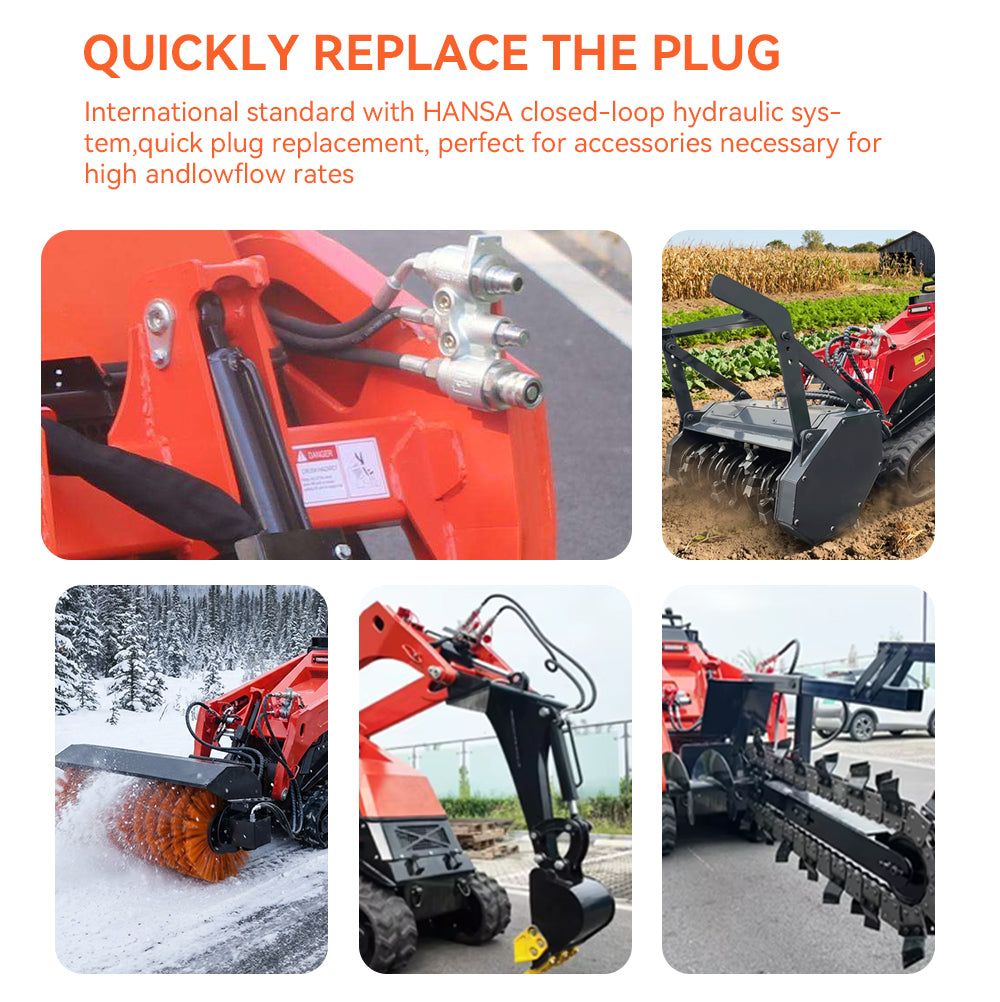

- Versatile attachment interfaces — international standard and quick plug. An international standard interface with an advanced hydraulic system for quick plug replacement, adapting to accessories for both high and low flow rates.
Quick-attach attachments
Our mini skid steers come equipped with a quick-change system, so one machine covers many jobs:
- Grapple — lift and move loose materials such as manure, bedding and hay.
- Snow plow — remove light or moderate snow from sidewalks and driveways.
- Pallet fork — move bulky, bagged or palletised material quickly and easily.
- Hydraulic hammer — break up concrete and hard surfaces.
- Angle broom — clear away dirt, dried mud, light snow and other debris.
Frequently asked questions
Why choose a stand-on loader over a sit-down model?
Better visibility and agility. The 360-degree view from the integrated standing platform is unmatched for safety and precision in tight spaces, and it is much faster to hop on and off for multi-tasking.
What is the benefit of your one-year warranty?
Complete peace of mind. Our comprehensive one-year warranty protects your commercial investment from unexpected component or repair costs, and we stand behind our manufacturing quality.
What is the purpose of the hydraulic pilot valve lock?
It is an essential operator safety feature. This mechanism instantly locks the hydraulic controls to prevent accidental boom or drive movement when you are stepping onto or off the operator platform.
Is the V1100 compatible with standard international attachments?
Absolutely. The V1100 comes standard with a universal, international quick-attach mechanism, allowing the loader to couple seamlessly with any standard-flow tools or attachments you already own or source locally.
How much can the V1100's 1,100-lb rated capacity really handle?
With a strong 1,100-lb (500 kg) rated operating capacity it easily handles full pallets of pavers, gravel bags or large hay bales — heavy-duty lifting for commercial-grade landscaping and earthmoving tasks.
A global supplier with customised solutions
DIG-BOY compact track loaders are trusted throughout the global market, with exports to North America, Oceania, Europe, Latin America and the Middle East. We can customise our flagship loaders based on your specific fleet needs and regional market preferences, offering premium engine brands (Kubota and Yanmar), advanced drive systems and custom machine colours.
