DIG-BOY

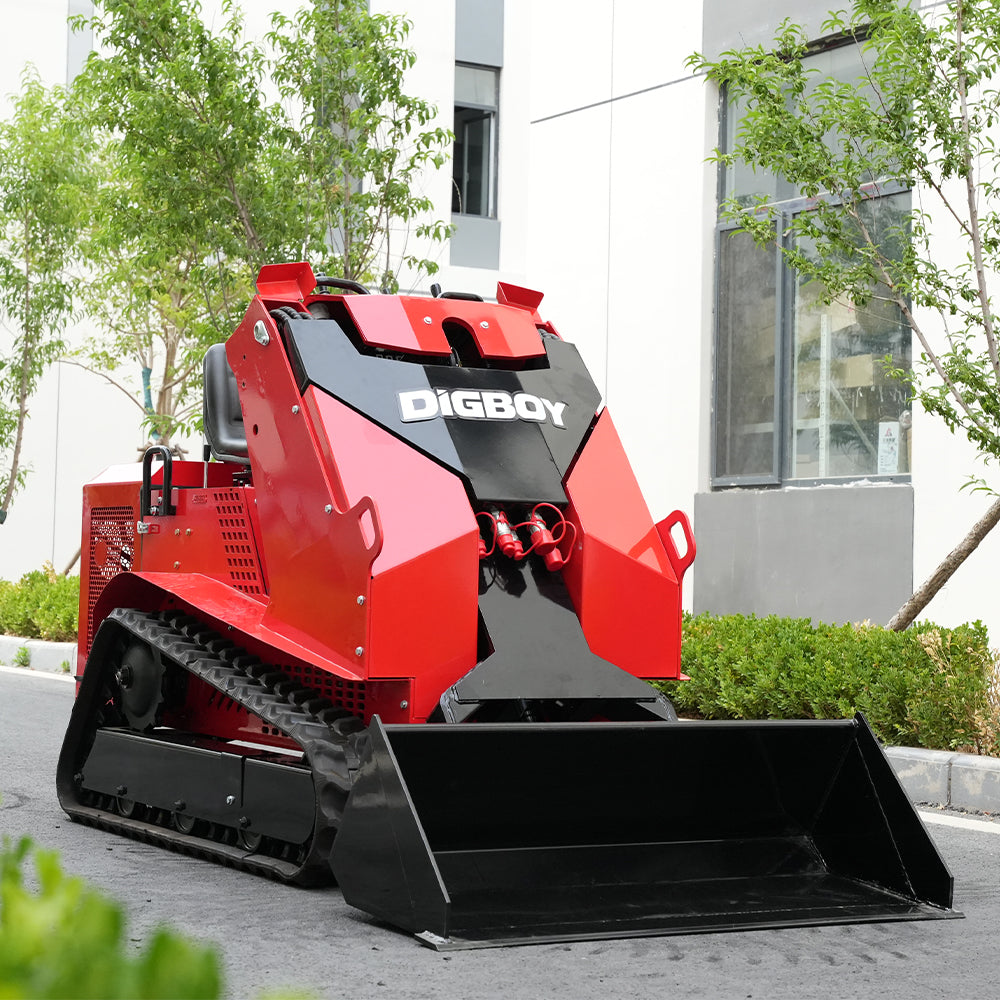

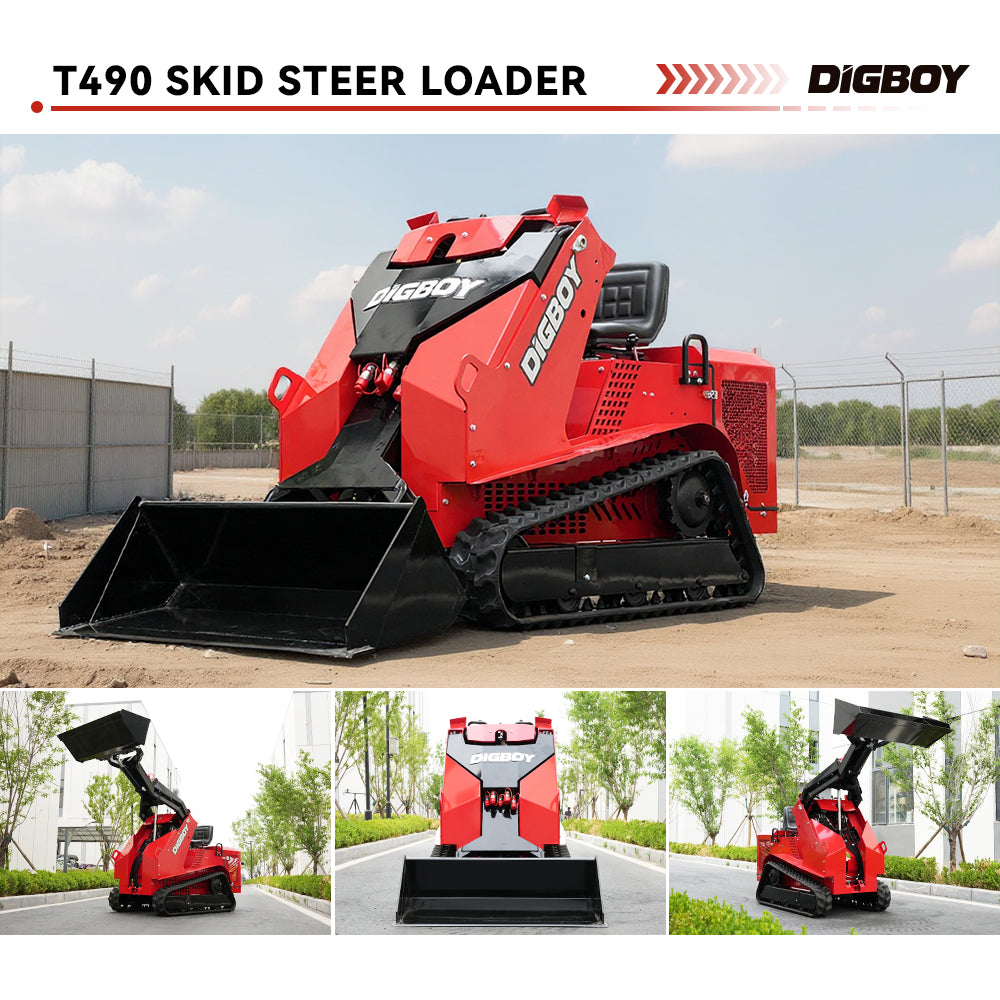

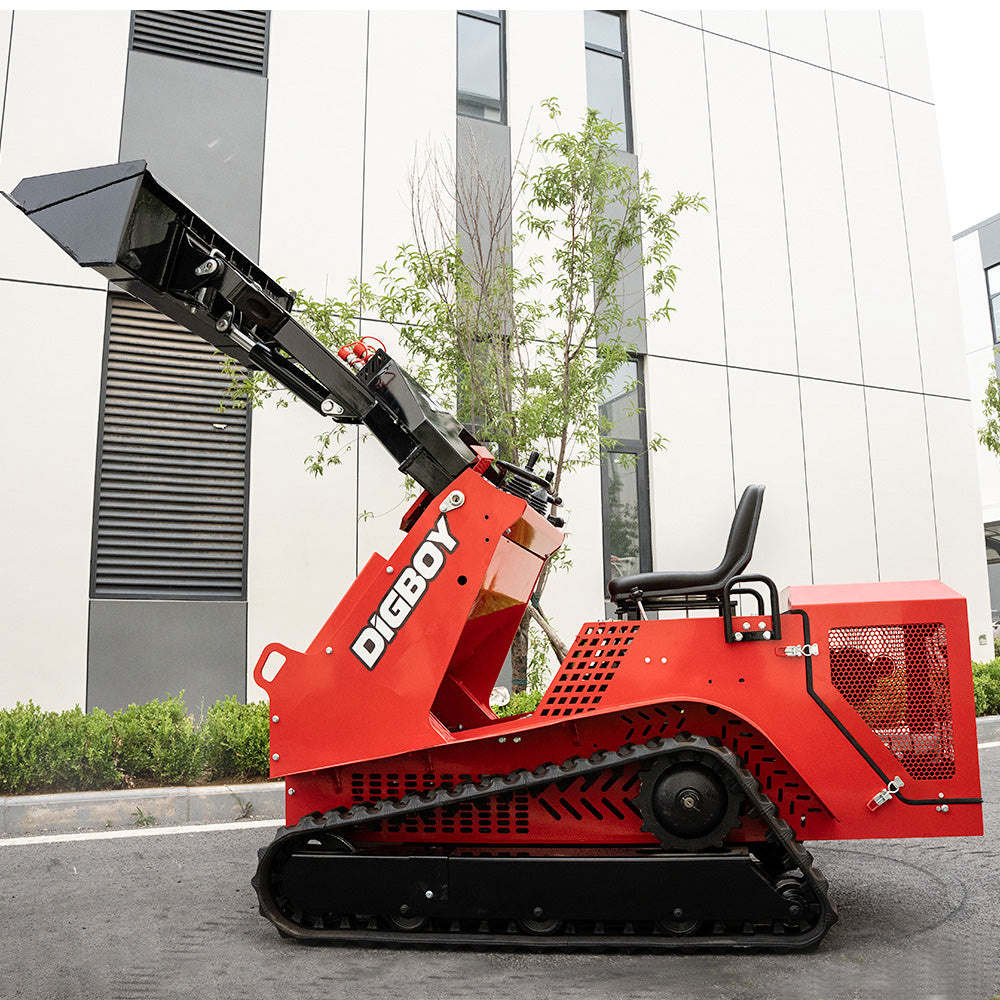

DIG-BOY DBL-T490 Skid Steer Track Loader with Seat
DIG-BOY DBL-T490 Skid Steer Track Loader with Seat
Couldn't load pickup availability
Share
DIG-BOY DBL-T490 Skid Steer Track Loader with Seat
350 kg maximum load, 1200 kg operating weight, best-in-class reach. The DIG-BOY DBL-T490 sit-on track loader combines heavy-duty lifting with a comfortable ride, so you can maximise productivity without the fatigue.
Operator fatigue is not just about comfort — it is about your bottom line. A tired operator is a slow, inefficient operator, losing hours of peak productivity every afternoon and shrinking profit margins. The DBL-T490 sit-on track loader is your mobile command centre: a comfortable seated design and smooth pilot controls eliminate fatigue so you can work at full efficiency all day. With its impressive load capacity and best-in-class reach, you load trucks faster, move materials more easily and finish jobs sooner.
Key specifications
| Bucket capacity | 0.12 m³ |
| Operating weight | 1200 kg |
| Maximum operating height | 2514 mm / 98.98 in |
| Maximum load | 350 kg |
Engine
| Engine brand | Rato R740 / Briggs & Stratton / Koop / Yanmar 380 |
| Emission standard | EPA / EURO 5 |
| Engine power | 14-17.8 kW / 19-24 HP |
| Number of cylinders | 2 / 3 |
Dimensions
| Overall length | 2644 mm / 104.09 in |
| Overall width | 1089 mm / 42.87 in |
| Overall height | 1872 mm / 42.87 in |
Other parameters
| Travel speed | 0-6 km/h |
| Working pressure | 17-21 bar |
| Total length without bucket | 2000 mm / 78.74 in |
| Unloading height | 1429 mm / 56.26 in |
| Unloading distance | 595 mm / 23.43 in |
| Length of tail | 500 mm / 19.69 in |
| Bucket width | 1050 mm / 41.34 in |
| Height to bucket pin | 1933 mm / 76.1 in |
Engineered for a better workday

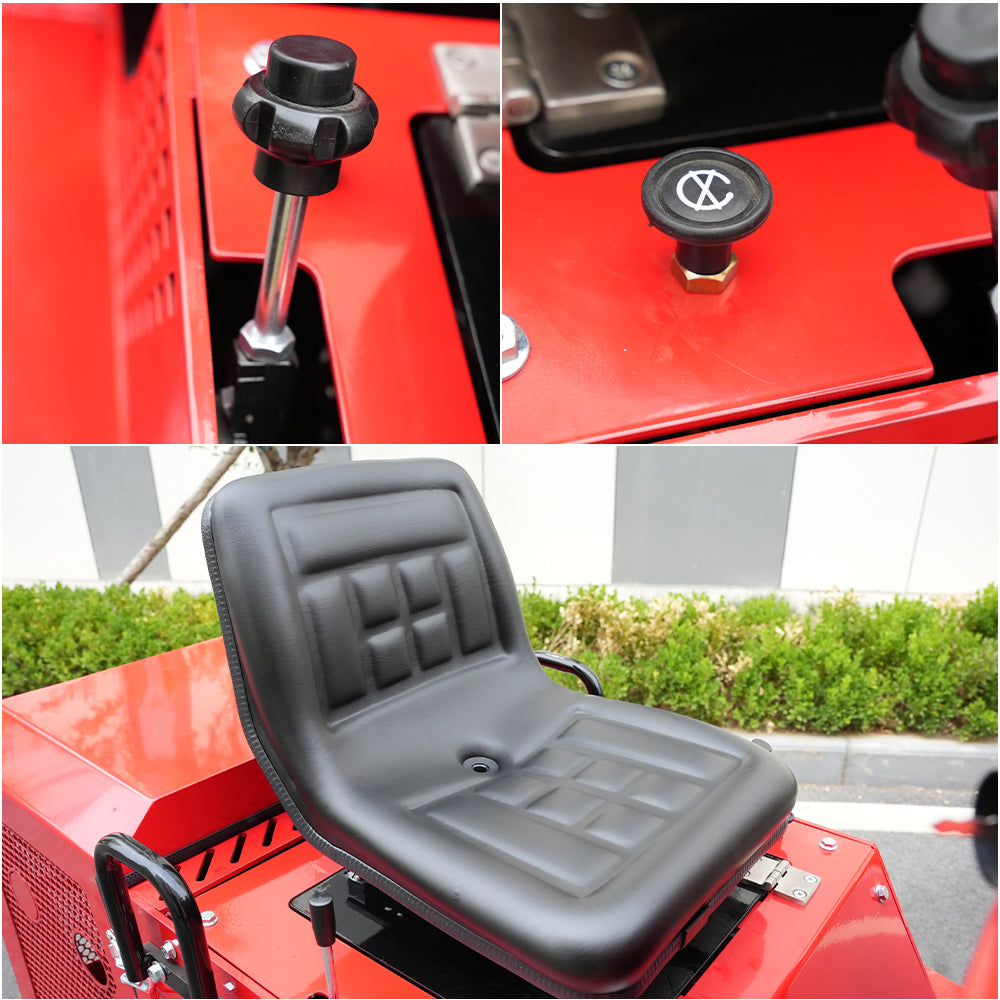

- Seat type — all-day productivity. The ergonomic ride-on platform and comfortable seat provide a wider view to the sides, reducing the operator fatigue that kills productivity.

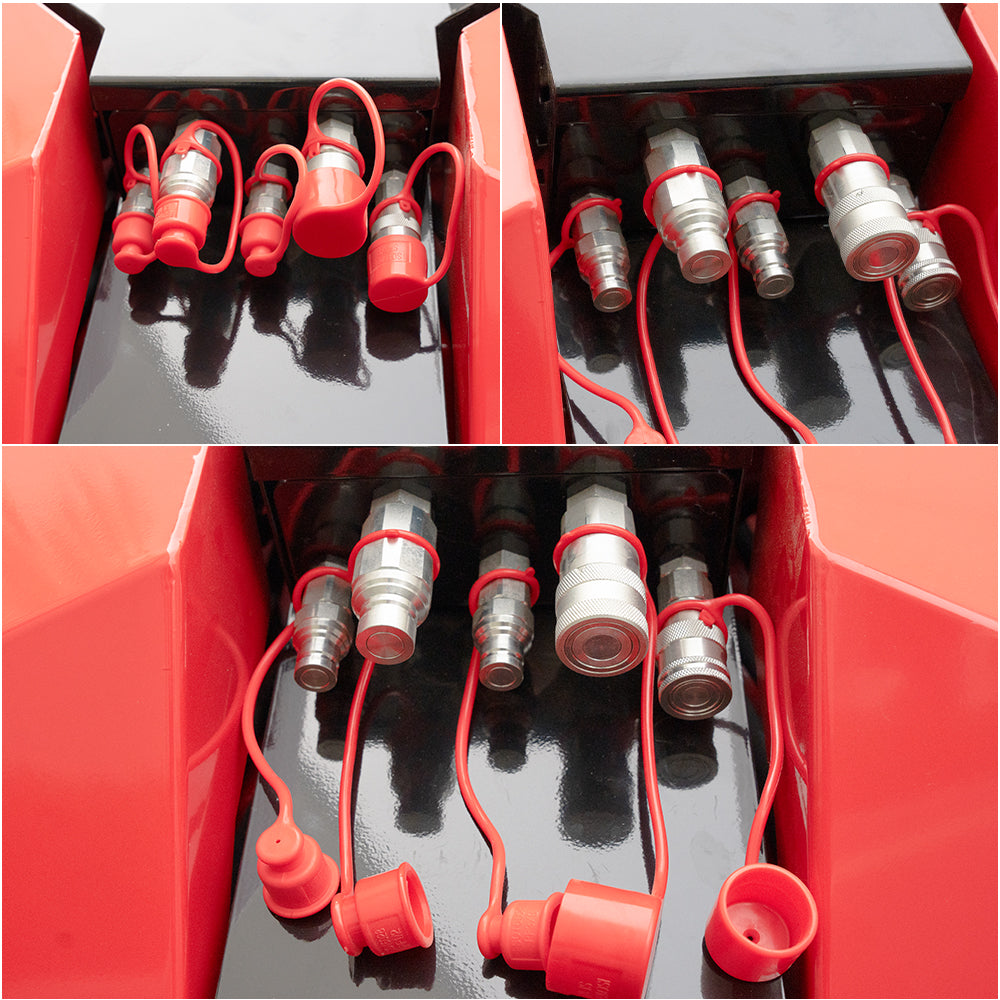

- Attachment interfaces — a universe of capabilities. Two attachment interfaces help you make quick work of grading, backfilling, digging and other tasks.
- Durable exterior panels — built for the real world. The body's exterior panels are made from high-strength steel, ensuring maximum strength and durability while providing excellent component protection.

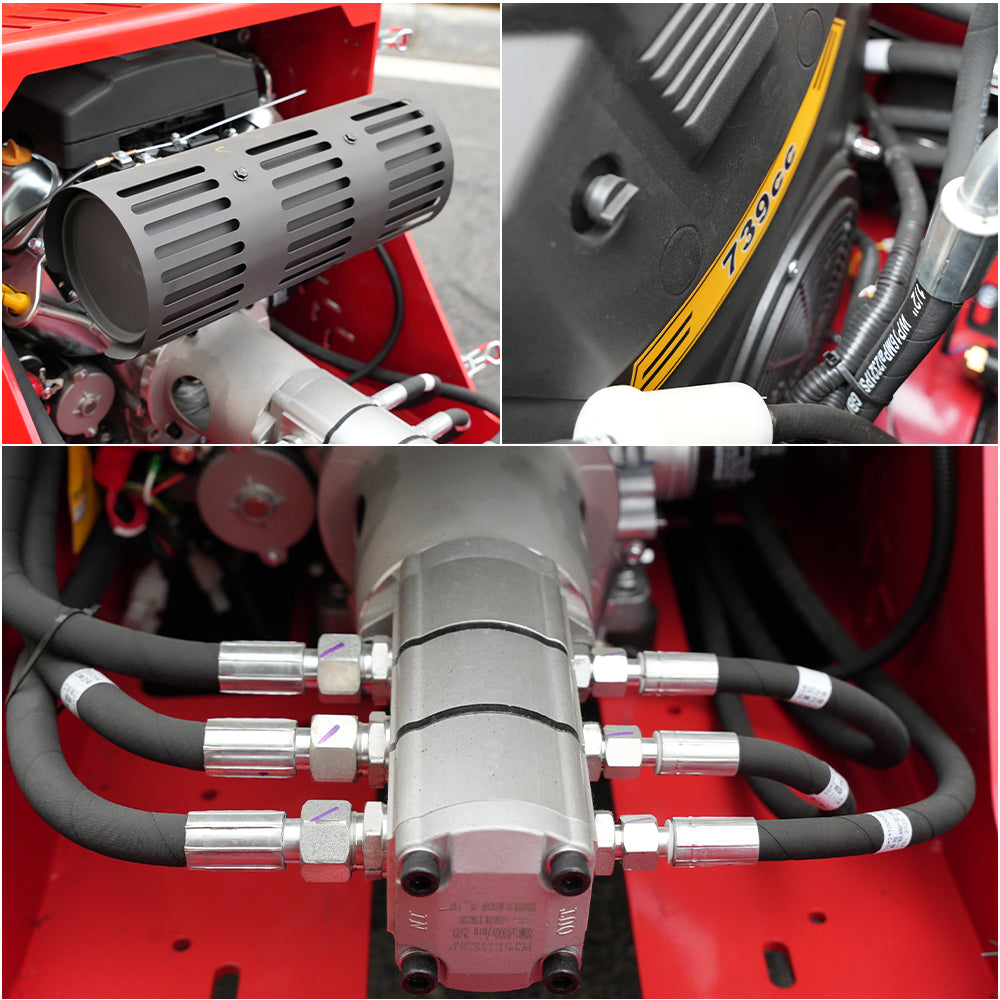

- Powerful engine — power without complication. A high-torque, non-DPF engine delivers plenty of muscle, and a new direct-drive system eliminates belts for less maintenance and more uptime.
- Sealed rollers — less maintenance, more profit. Permanently lubricated (sealed) rollers and idlers reduce undercarriage maintenance, and maintenance-free bushings in the work group support increased uptime and lower operating costs.
Quick-attach attachments
Our mini skid steers come equipped with a quick-change system, so one machine covers many jobs:
- Grapple — lift and move loose materials such as manure, bedding and hay.
- Snow plow — remove light or moderate snow from sidewalks and driveways.
- Pallet fork — move bulky, bagged or palletised material quickly and easily.
- Hydraulic hammer — break up concrete and hard surfaces.
- Angle broom — clear away dirt, dried mud, light snow and other debris.
Frequently asked questions
Why choose a sit-on loader over a stand-on model?
All-day comfort. For jobs that require long hours of operation, a seated position dramatically reduces operator fatigue, leading to higher productivity and better safety.
What is the benefit of your one-year warranty?
Peace of mind. It protects your investment from unexpected repair costs, and we stand behind our quality so you can buy with confidence.
What is the purpose of the hydraulic pilot valve lock?
It is a critical safety feature that locks the controls to prevent accidental movement when you are getting in or out of the machine.
Can I retrofit my loader with new attachments?
Absolutely. Our loaders are designed to be versatile, so you can expand your services and profitability by adding new attachments at any time as your business grows.
Does the seated position make it harder to see the attachment?
Not at all. The machine is designed with an excellent line of sight to the attachment and the surrounding area. The seating position is optimised for both comfort and a clear, commanding view of the work being done.
Sit-on track loader supplier with customised solutions
DIG-BOY compact machines are trusted in the global market, with exports to Southeast Asia, America, Europe and the Middle East. We understand that every market is unique, so we can customise new models based on your specific customer needs and market preferences — including renowned engine brands, cabin types, drive systems, dozens of specialised attachments and custom machine colours.
