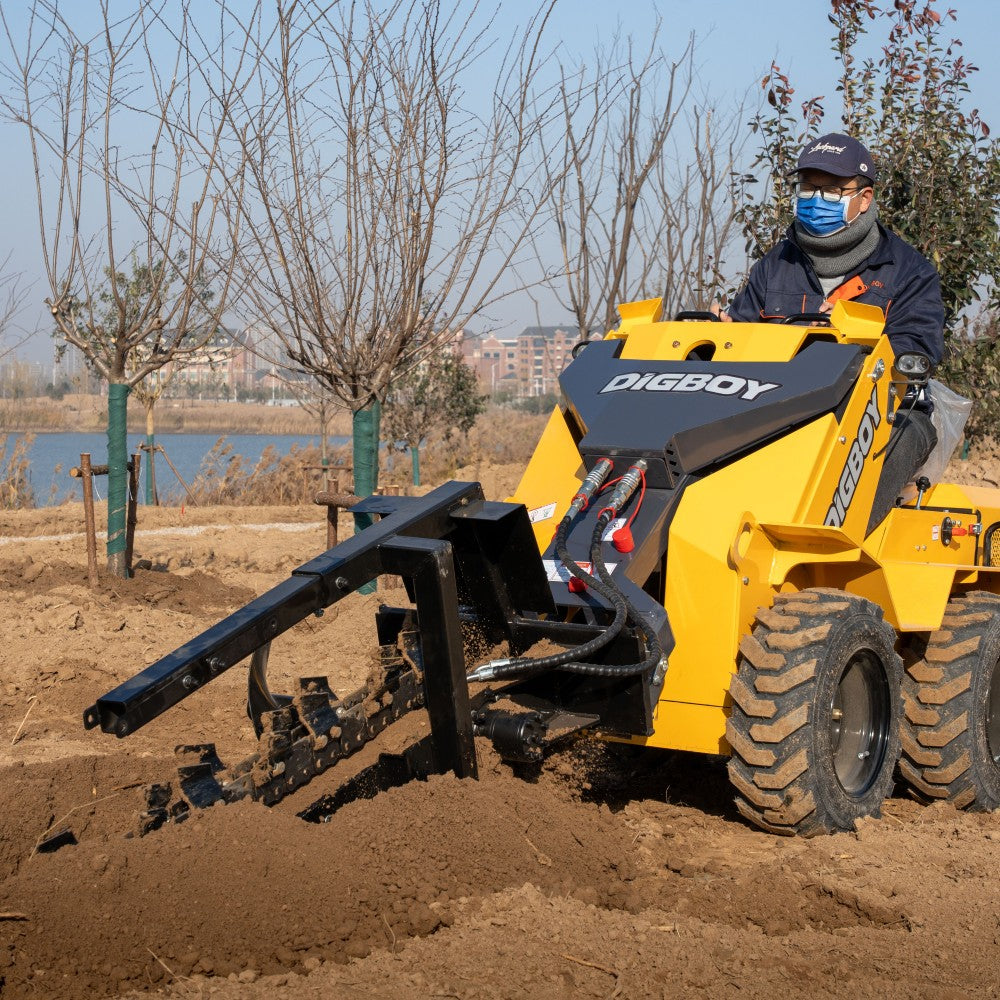

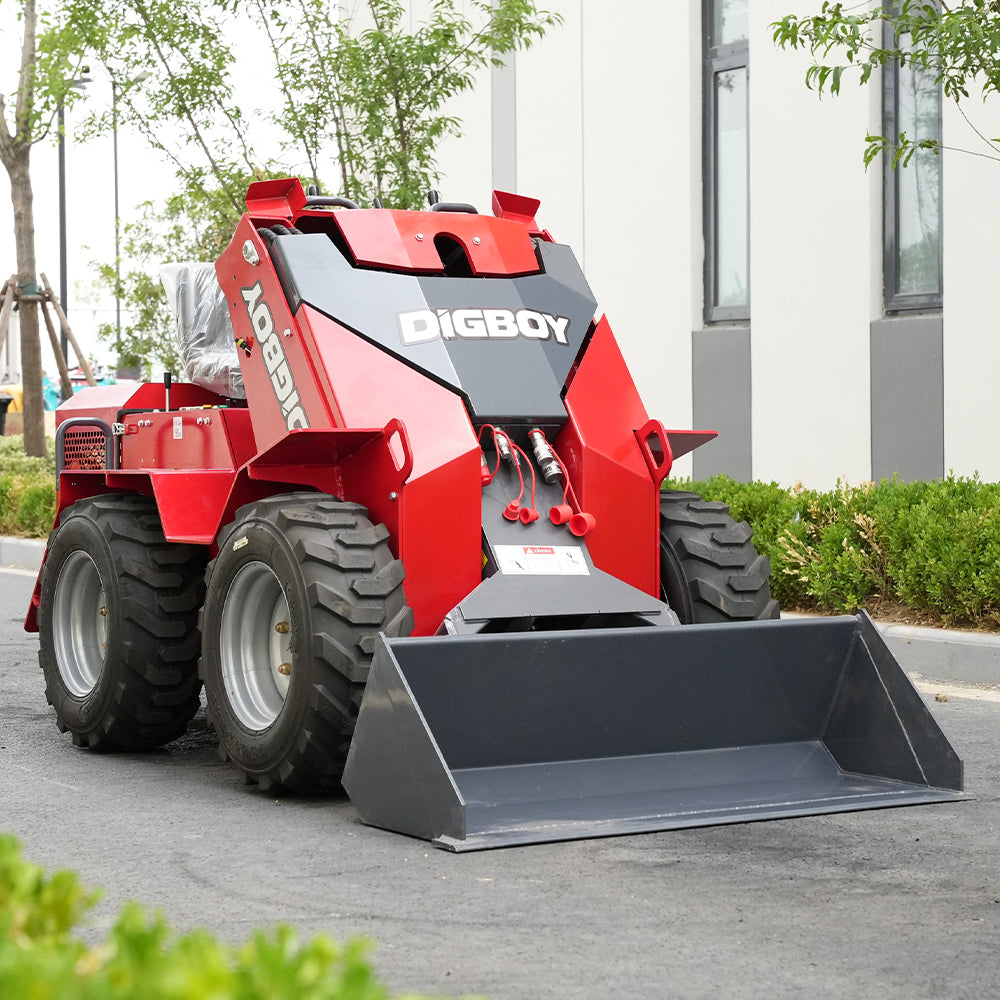

DIG-BOY DBL-S490 Mini Skid Loader

$10,000.00 USD

Sale Sold out

Shipping calculated at checkout.

Engine Yanmar 380 Rato R740 Briggs & Stratton Koop

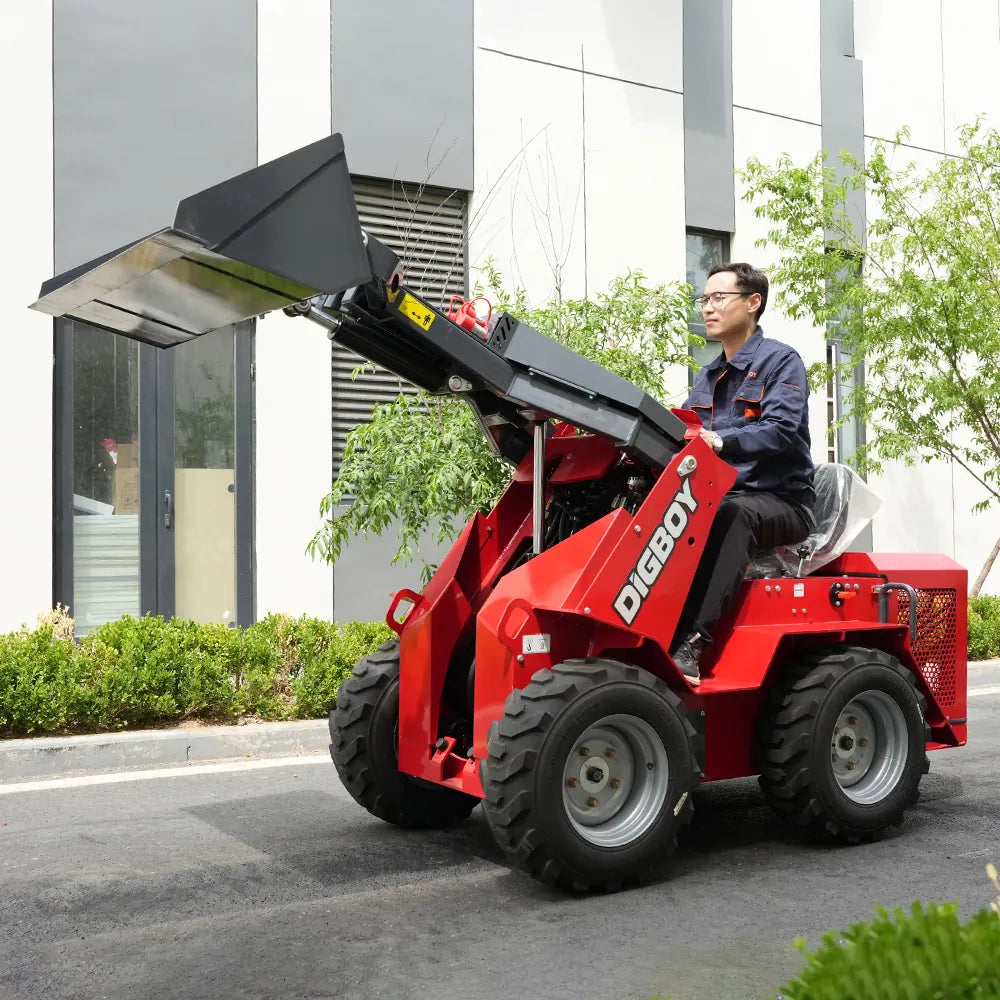

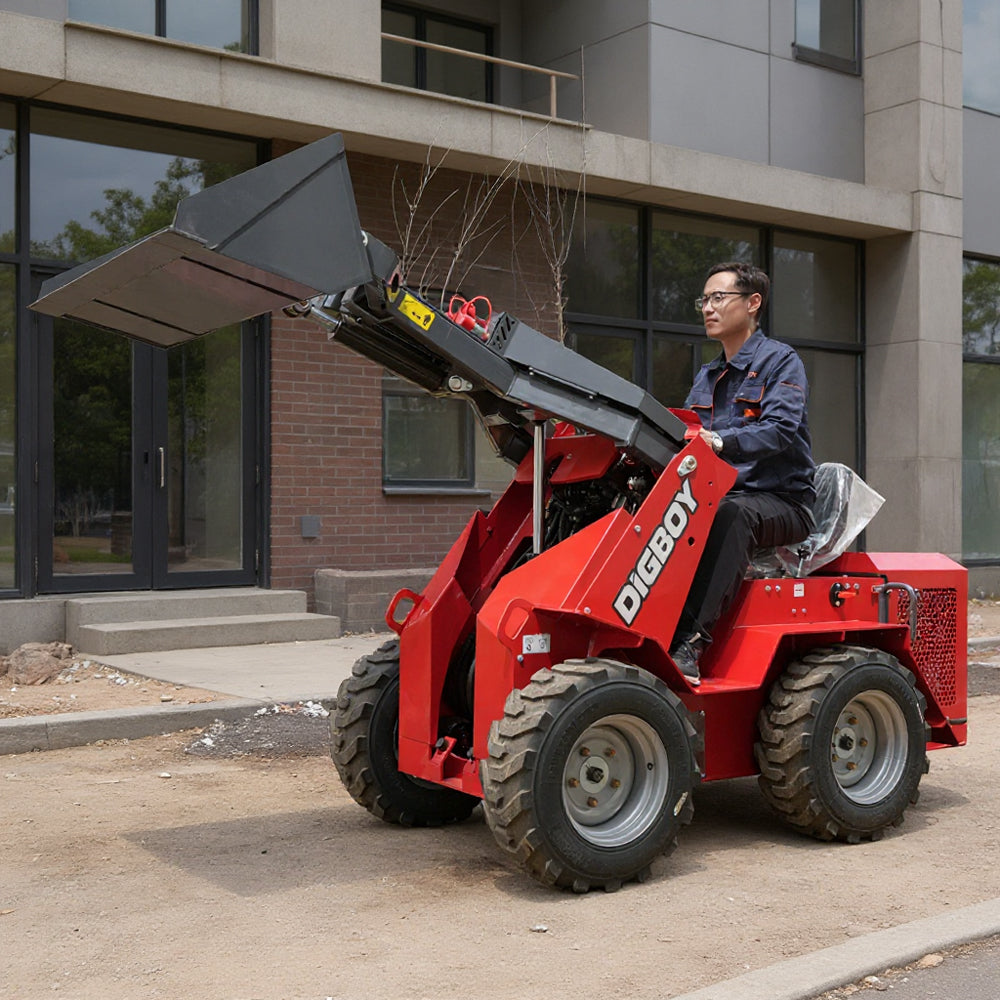

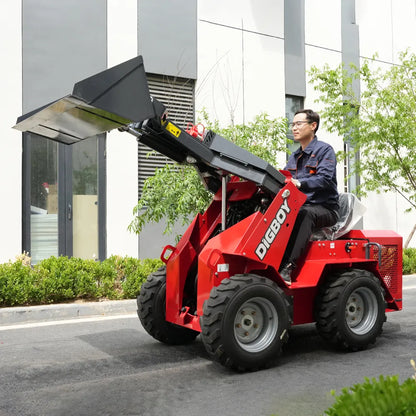

DIG-BOY DBL-S490 Mini Skid Loader | Wheel Type, Sit-On 24HP

250 kg rated load, 350 kg maximum, 1200 kg operating weight, sit-on 24HP wheel loader. The DIG-BOY DBL-S490 delivers maximum power and speed for your toughest jobs — stop wasting time with walk-behind machines.

Spending all day on your feet behind a slow, clumsy walk-behind loader is not just exhausting; it is costing you money. Every hour you waste is another job you cannot get to, while your competition finishes faster and wins more bids. Take a seat and boost your profits with the DIG-BOY DBL-S490 wheeled mini skid steer loader. Its powerful 24HP engine and sit-on design let you work 2x faster than a walk-behind, so you finish jobs in half the time with zero fatigue.

Specifications

Bucket capacity	0.12 m³
Operating weight	1200 kg / 2646 lb
Rated load	250 kg / 551 lb
Maximum load	350 kg / 772 lb
Travel speed	0-6 km/h / 0-3.7 mph

Engine

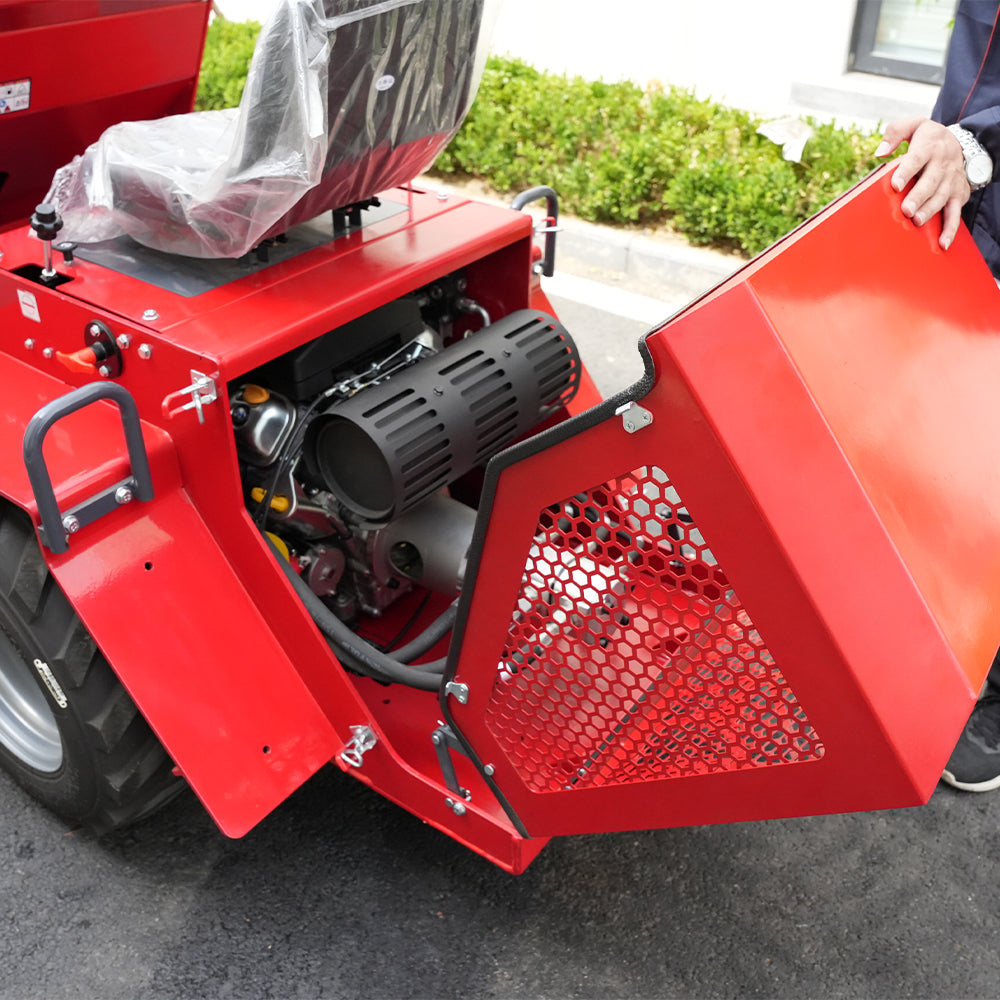

Engine model	Yanmar 380 / Rato R740 / Briggs & Stratton / Koop
Emission standard	EPA / EURO 5
Rated power	14-17.8 kW / 19-24 HP
Cylinders	2 / 3
Intake method	Natural aspiration

Dimensions

Maximum operating height	2514 mm / 99.0 in
Height to bucket pin	1933 mm / 76.1 in
Total height	1872 mm / 73.7 in
Total length with standard bucket	2644 mm / 104.1 in
Total length without bucket	2000 mm / 78.7 in
Unloading height	1429 mm / 56.3 in
Unloading distance	595 mm / 23.4 in
Width of vehicle	1089 mm / 42.9 in
Bucket width	1050 mm / 41.3 in
Ground clearance	195 mm / 7.7 in
Track base	925 mm / 36.4 in
Length of tail	500 mm / 19.7 in

Other parameters

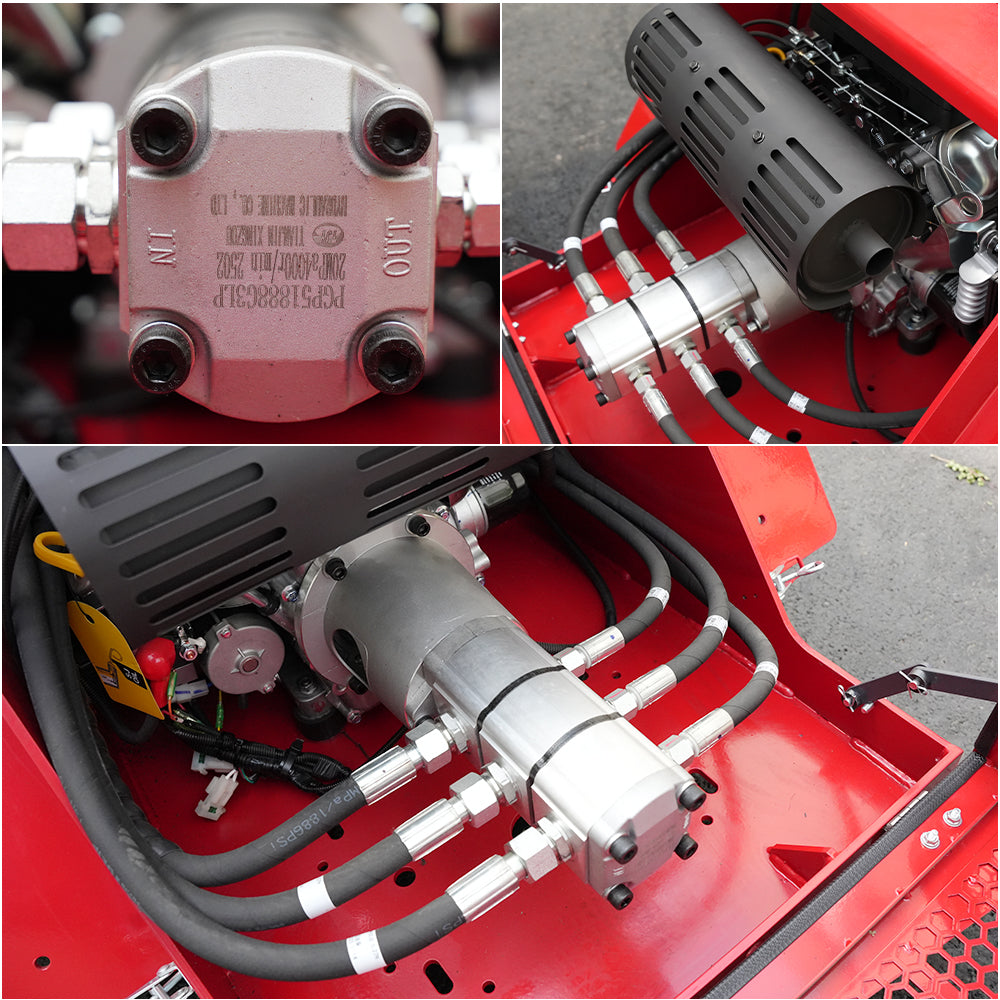

Working pressure	17-21 bar
Fuel tank capacity	10 L

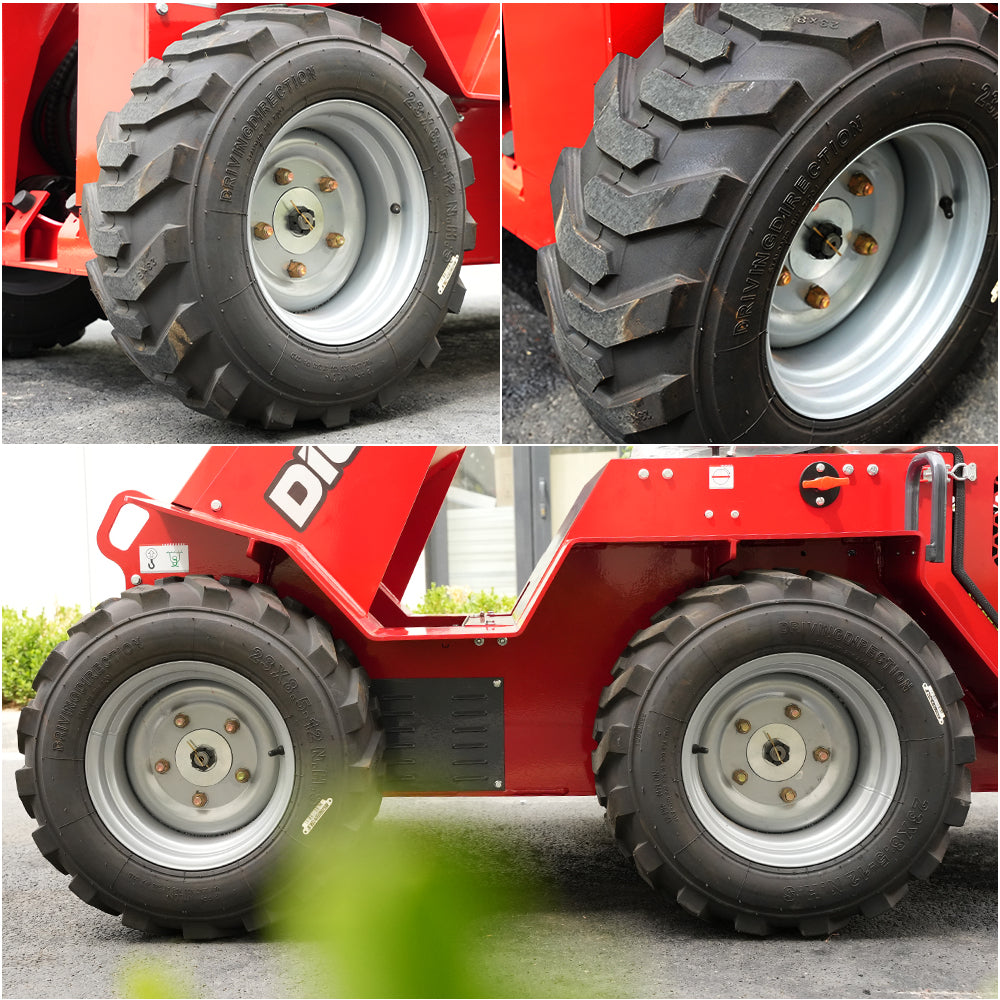

Tyre size	18 × 72
Bucket rotation angle on ground	27°
Bucket rotation angle at maximum	34°

Features and advantages

Compact size — access more profitable jobs. A slender 1089 mm design allows easy navigation in tight spaces. Because you can get into backyards and through gates that larger machines cannot, you can take on more jobs and increase your profitability.
Joystick controls — effortless all-day operation. Ergonomic ISO joystick controls provide finely tuned precision. Because they are so comfortable and intuitive to use, you can operate all day with less fatigue and greater accuracy.
Minimal ground disturbance — protect your work, protect your profits. The wheeled design is perfect for work on finished surfaces. Because it minimises damage to lawns, pavers and concrete, you avoid costly repair work and keep your clients happy.
Replace manual labour — multiply your earning power. DIG-BOY loaders replace manual labour and wheelbarrows. They deliver fast cycle times, strong breakout force and excellent pushing ability, allowing one person to do the work of three.
Safety features — protect your most valuable asset. Neutral-start interlocks prevent accidental starting. An attachment shutdown system engages when the operator leaves the seat. We build our machines to protect you, your crew and your investment.

Your all-in-one business solution

Our mini skid steers come equipped with a quick-change system, so one machine covers many jobs:

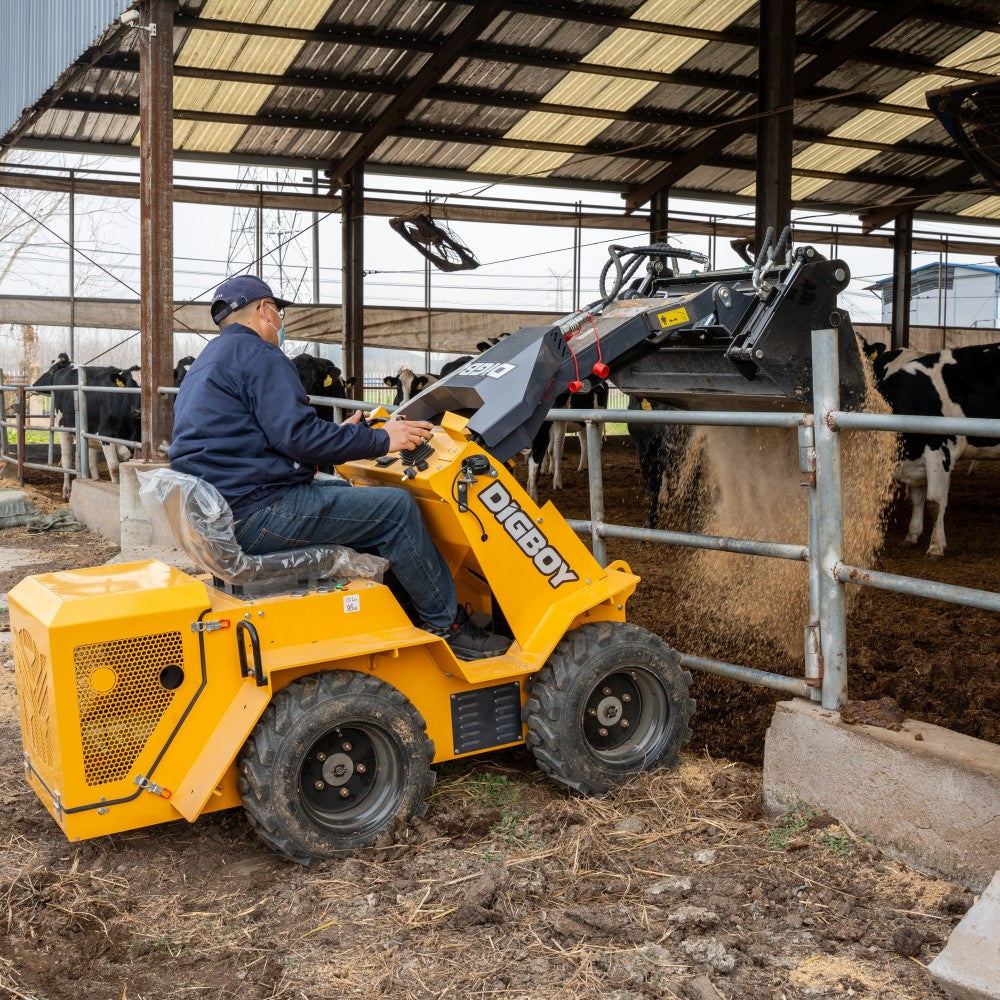

Skid steer grapple — lift and move loose materials such as manure, bedding and hay.
Snow plow — remove light or moderate snow from sidewalks and driveways.
Pallet fork — move bulky, bagged or palletised material quickly and easily.
Hydraulic hammer — break up concrete and hard surfaces.
Angle broom — clear away dirt, dried mud, light snow and other debris.

Direct factory supply — we deliver to your door

We do not just build skid loader machines; we deliver them right to your driveway. We specialise in exporting high-quality skid steer equipment to North America, Europe and beyond, with extensive international logistics expertise ensuring a smooth door-to-door process. We are just as passionate about serving individual farmers and private owners as we are about large-scale dealers. Even if you have zero import experience, our hassle-free DDP (Door-to-Door) shipping handles all customs and duties for you. Your S490 loader and custom attachments will arrive at your farm, garden or job site ready for work, backed by responsive after-sales support and guaranteed spare parts availability.

Frequently asked questions

Why choose a sit-on loader over a walk-behind?
Speed and less fatigue. A sit-on loader is up to 2x faster and allows you to work all day without getting tired. This means more work done and more profit.

What is the benefit of your one-year warranty?
Peace of mind. It protects your investment from unexpected repair costs, and we stand behind our quality so you can buy with confidence.

What is the purpose of the hydraulic pilot valve lock?
It is a critical safety feature. It locks the controls to prevent accidental movement when you are getting on or off the machine.

Can I add new attachments later on?
Absolutely. Our loaders are designed to be versatile. You can expand your services and profitability by adding new attachments at any time.

How does a wheeled loader save me money compared to a tracked one?
Lower long-term costs. Wheeled loaders have fewer moving parts in the undercarriage, which means less maintenance and lower replacement costs for tyres compared to tracks.
