DIG-BOY DBL-S750 Wheeled Skid Steer Loader
DIG-BOY DBL-S750 Wheeled Skid Steer Loader
Couldn't load pickup availability
Share

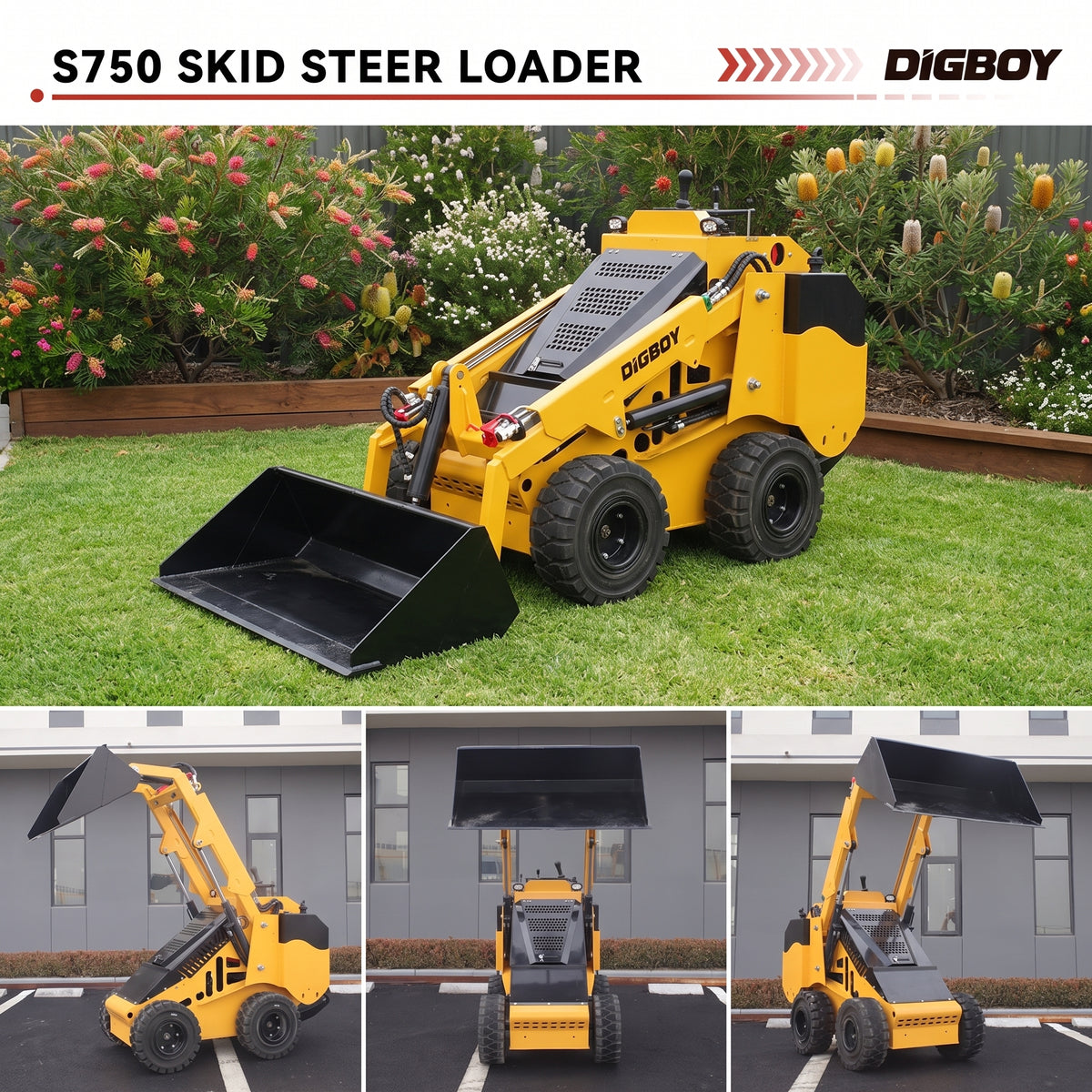

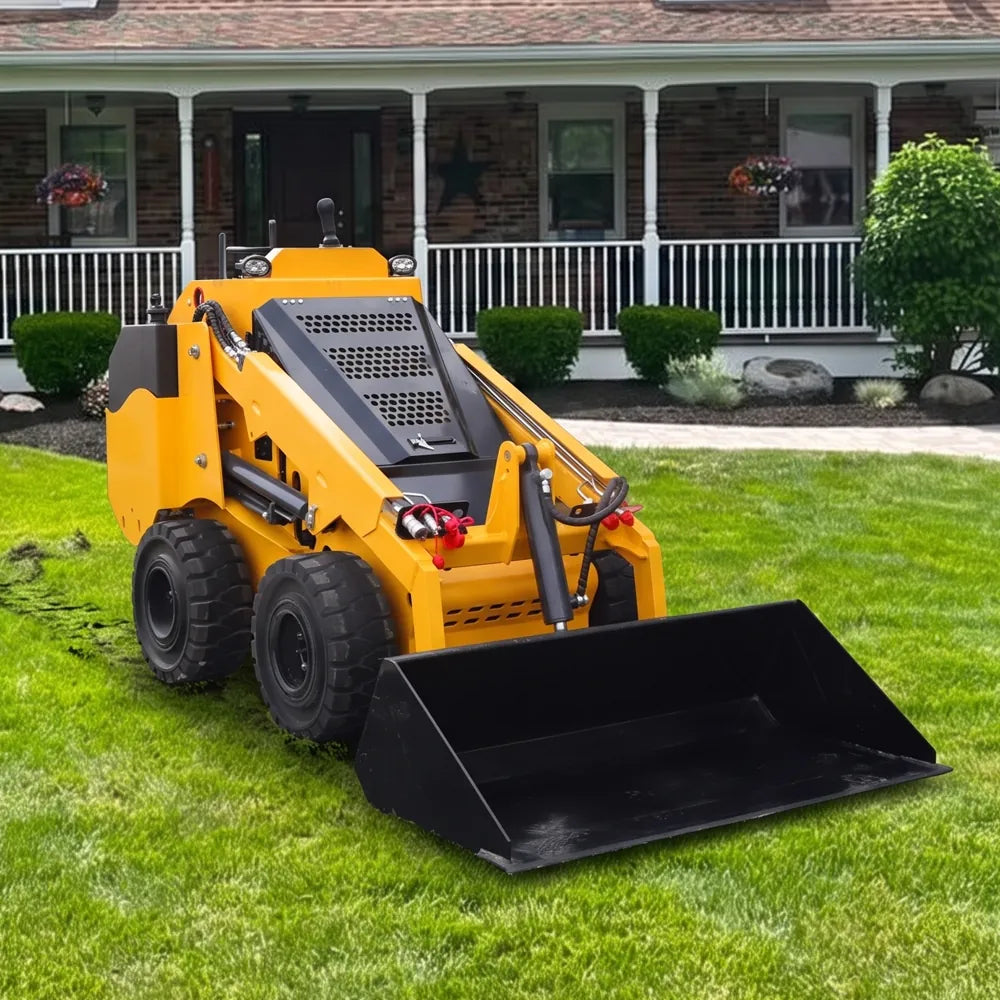

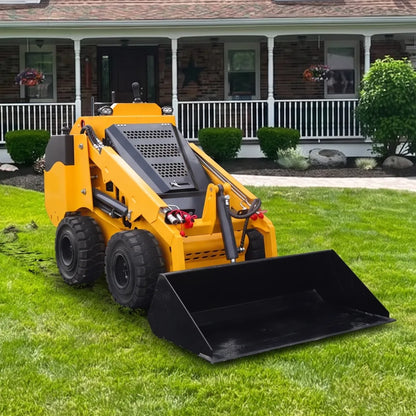

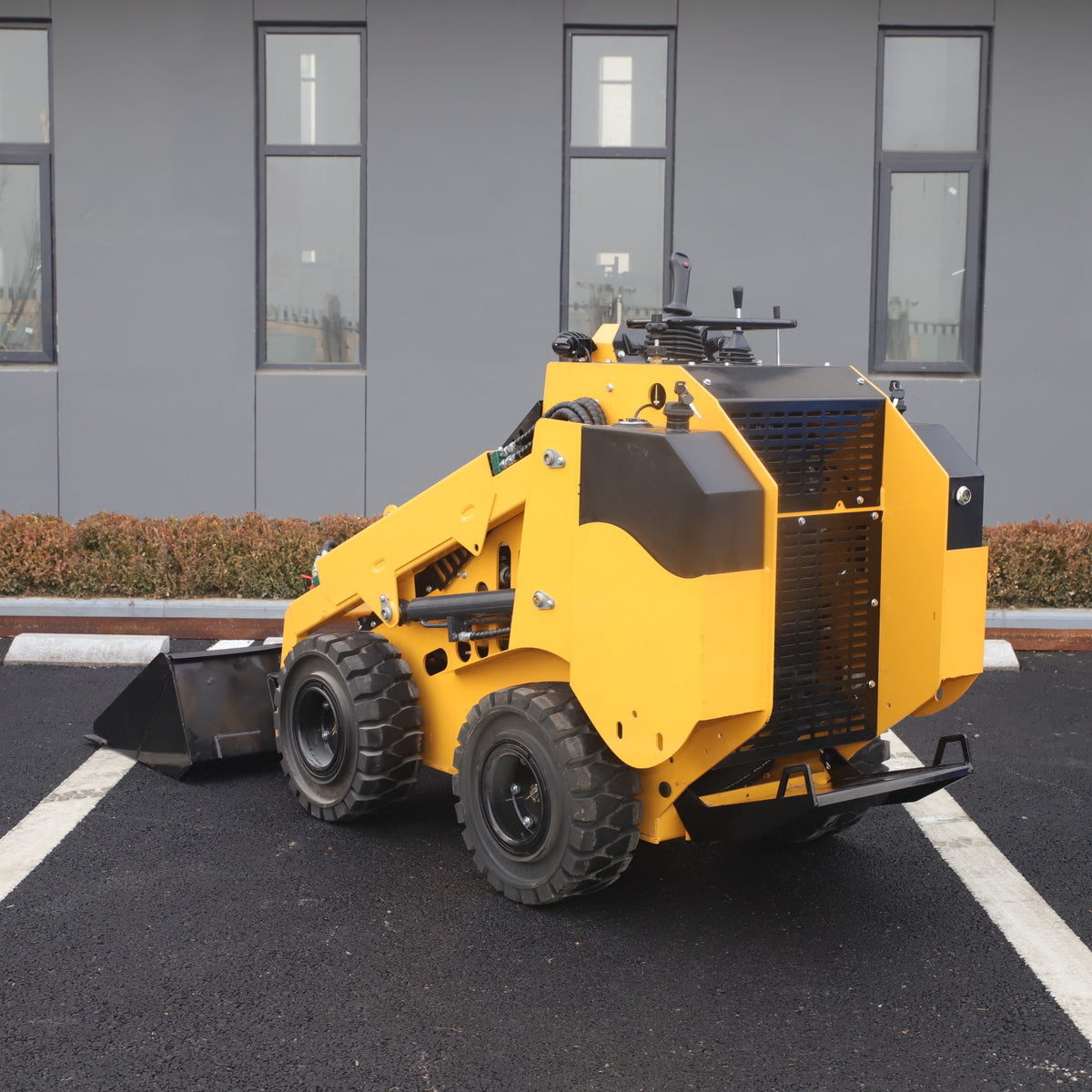

DIG-BOY DBL-S750 Wheeled Skid Steer Loader
400 kg rated loading capacity. 2175 mm hinge height. 62.4 L/min high-flow hydraulics. The DIG-BOY DBL-S750 is a heavy-duty stand-on wheeled skid steer loader built for continuous daily operation on farms, ranches and municipal landscaping sites — it drives demanding hydraulic attachments without power drops or overheating.
Compact loaders that overheat, stall and starve your augers stop being an inconvenience and start costing you hours. The S750 is engineered around a high-torque diesel engine and an optimised direct-drive hydraulic system that eliminates belts — so you spend your day working instead of waiting for the machine to cool down. At just 1070 mm wide with responsive mechanical controls, it manoeuvres through narrow gates, barn aisles and tight landscaping layouts that a full-size skid steer cannot reach.
Key specifications
| Rated loading capacity | 400 kg |
| Machine weight | 1330 kg |
| Working system pressure | 250 bar |
| Working system flow rate | 62.4 L/min |
| Walking speed | 6 km/h |
Engine
| Engine brand | Yanmar 380 / Kubota D1105 / Laidong 385 |
| Emission standard | EPA / EURO 5 |
| Engine power | 18.2 kW / 17.8 kW / 17.1 kW |
| Number of cylinders | 3 |
| Fuel tank capacity | 35 L |
Dimensions
| Overall length | 2694 mm / 106.06 in |
| Overall width | 1070 mm / 42.13 in |
| Overall height | 1520 mm / 59.84 in |
| Operating height | 2695 mm / 106.1 in |
| Height to bucket hinge pin | 2175 mm / 85.63 in |
| Overall length without bucket | 2067 mm / 81.38 in |
| Angle of departure | 23° |
Hydraulic system
| Driving system pressure | 250 bar |
| Driving system flow rate | 62.4 L/min |
| Work pressure | 18 MPa |

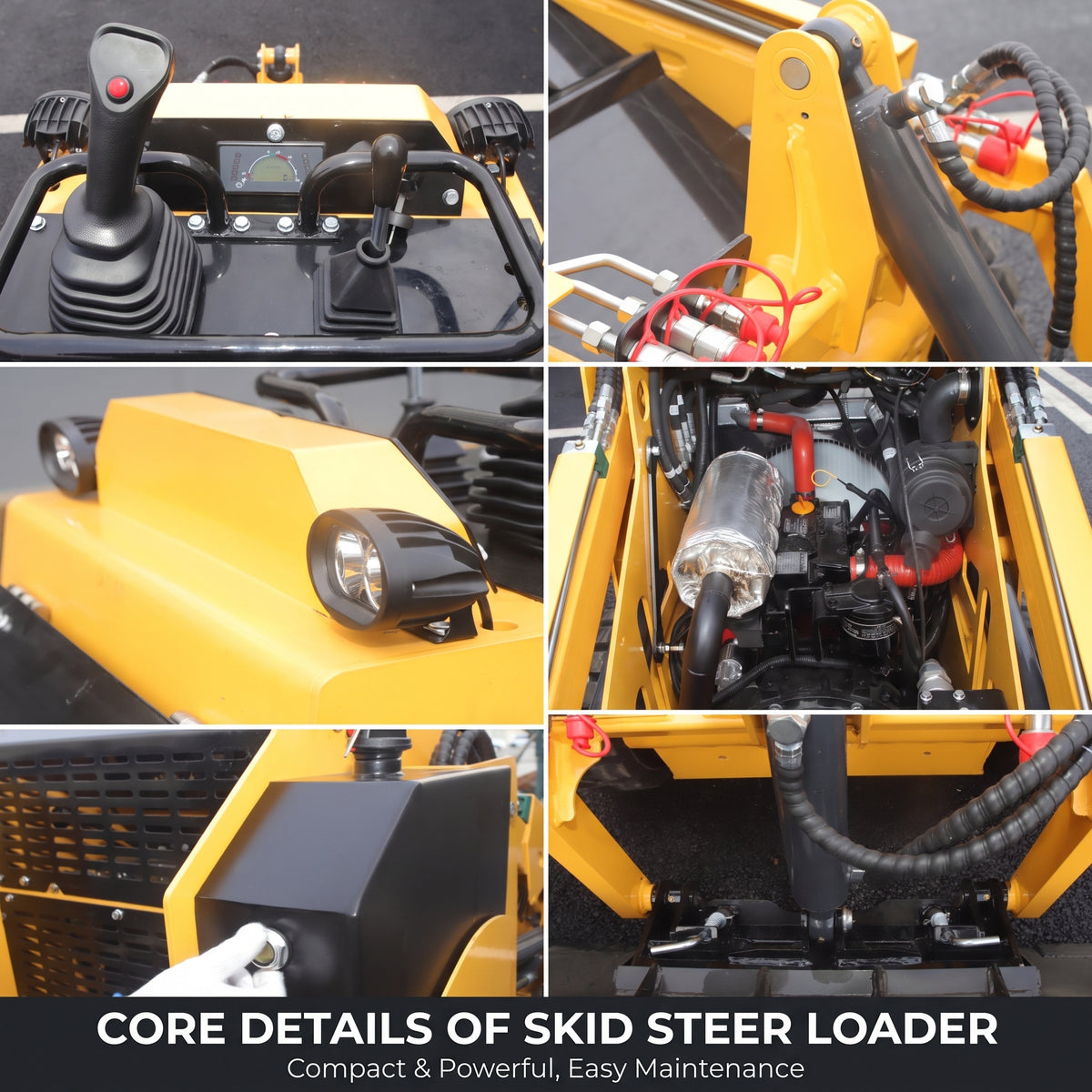

Engineered for working efficiency
- Integrated stand-on platform. The cushioned stand-on platform reduces operator fatigue during long daily farm work, and gives an unobstructed view around the wheels and to the quick-attach bucket edge.
- Heavy-duty steel frame. The outer chassis is constructed from heavy-gauge reinforced steel, providing maximum structural durability while protecting the internal hydraulic valves.
- High-flow hydraulic interface. The 62.4 L/min high-flow auxiliary system drives augers, trenchers, lawn mowers, log grapples and other demanding attachments without overheating or stalling.
- Premium diesel engine. Powered by a high-torque Yanmar 380, Kubota D1105 or Laidong 385 engine. An optimised direct-drive hydraulic system eliminates belts for reduced downtime and maximum uptime.
- Heavy-duty wheel drive. Solid puncture-proof tyres and heavy-duty wheel hubs eliminate flat-tyre risks while reducing undercarriage maintenance costs. The 250 bar high-pressure drive circuit delivers strong traction, smooth turning and long-term reliability for your fleet.
- Hydraulic pilot valve lock. A critical safety control that isolates the hydraulic controls to prevent accidental boom or attachment movement while stepping on or off the machine.
- Universal quick-attach plate. Expand your capabilities at any time with a full range of quick-attach attachments.

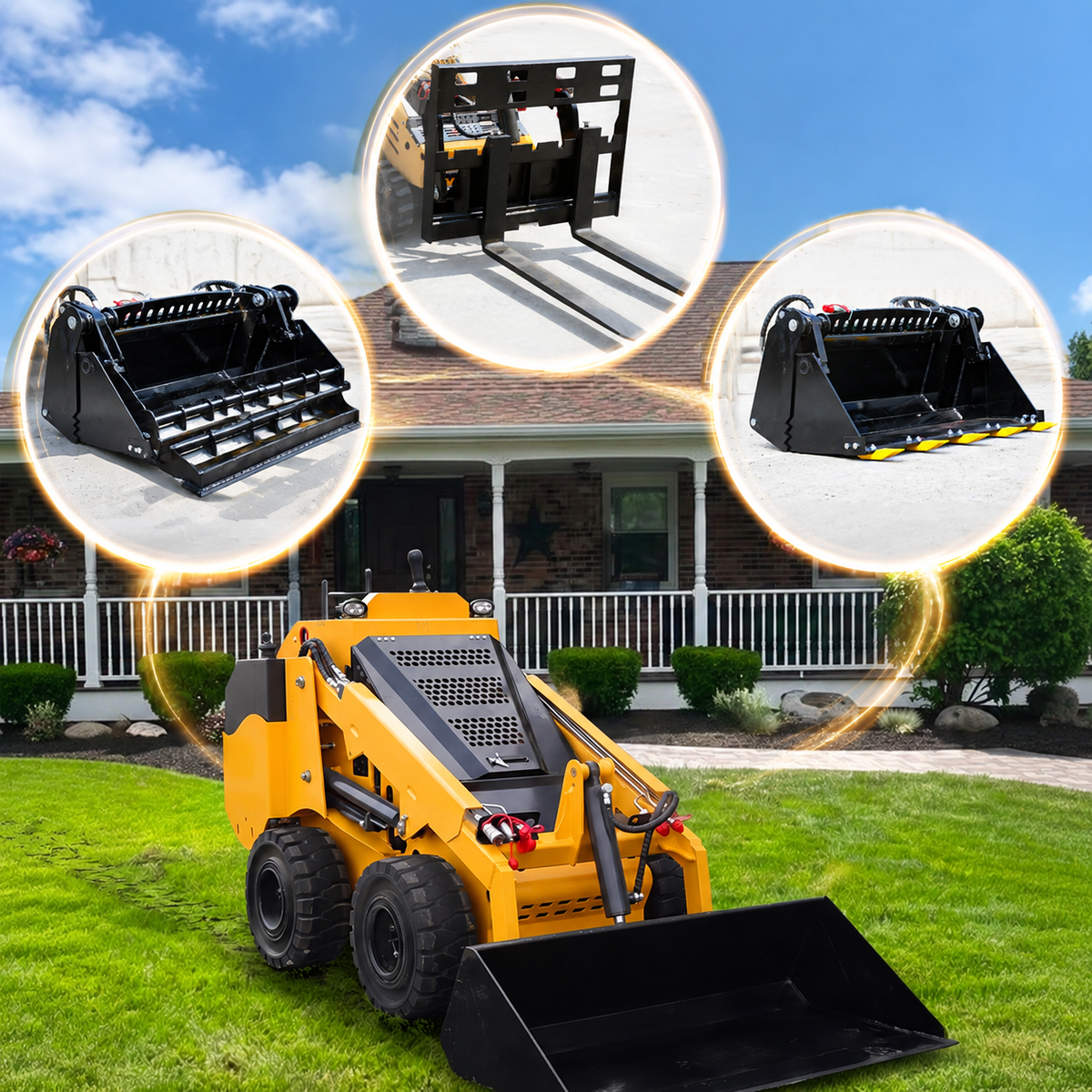

Quick-attach attachments
Our mini skid steers come equipped with a quick-change system, so one machine covers many jobs:
- Grapple — lift and move loose materials such as manure, bedding and hay.
- Snow plow — remove light or moderate snow from sidewalks and driveways.
- Pallet fork — move bulky, bagged or palletised material quickly and easily.
- Hydraulic hammer — break up concrete and hard surfaces.
- Angle broom — clear away dirt, dried mud, light snow and other debris.
Warranty and support
Every DBL-S750 ships with a comprehensive one-year warranty covering unexpected component maintenance costs, backed by fast spare parts dispatch and technical support to protect long-term machine performance.
Frequently asked questions
Why choose a stand-on wheeled loader over a sit-down or tracked model?
Superior manoeuvrability and low maintenance. The 360-degree view from the cushioned standing platform provides exceptional safety in tight farm spaces. It is faster to step on and off during daily operations, while solid tyres eliminate flat-tyre downtime compared with tracked units.
How much can a 400 kg capacity loader really do?
It moves full pallets of feed, heavy soil bags or large round hay bales with ease — saving significant time on daily farm work.
Can I retrofit my S750 with new attachments?
Yes. The universal quick-attach plate and 62.4 L/min high-flow auxiliary hydraulics let you add augers, trenchers or grapples at any time.
What does the comprehensive one-year warranty cover?
It safeguards your equipment investment against unexpected component maintenance costs, with fast spare parts dispatch and technical support.
What is the purpose of the hydraulic pilot valve lock?
It isolates the hydraulic controls to prevent accidental boom or attachment movement while you step on or off the machine.
Global supply and customised solutions
DIG-BOY equipment is exported to Australia, North America, Europe, Southeast Asia and the Middle East, meeting diverse international emission standards including EPA and EURO 5. We serve both commercial dealers and individual buyers with tailored machine configurations — engine brands, drive systems, high-flow auxiliary lines, dozens of quick-attach attachments and custom colours — backed by end-to-end door-to-door logistics.
